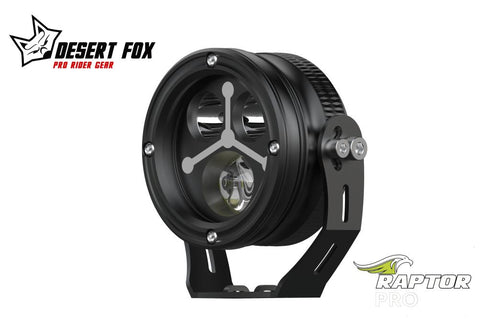

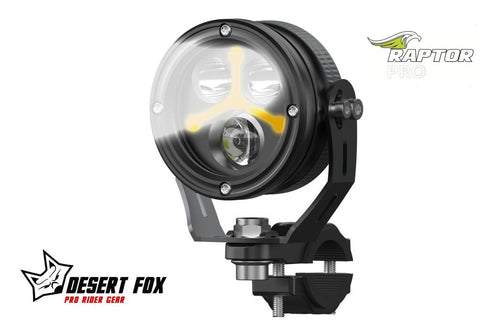

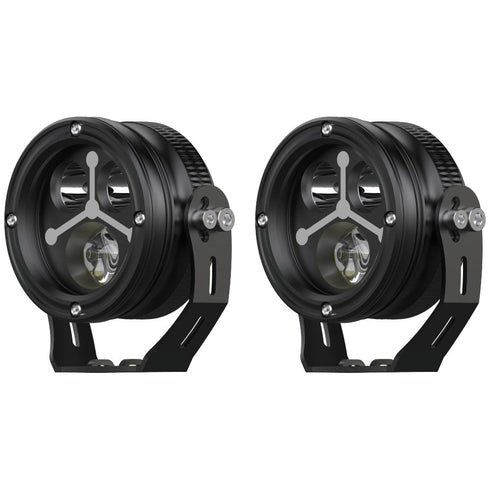

Desert Fox Raptor Pro RP2 Precision Motorcycle LED Spot Light Kit

Adding a set of high performance auxiliary driving lights (spot lights) is a simple and affordable upgrade that can significantly enhance your ability to see and to be seen.

The Desert Fox Raptor PRO RP2 motorcycle auxiliary led spot lights are packed with unique groundbreaking features, not found in other motorcycle lighting systems.

Now with even more features in the new upgraded Raptor Pro RP2

Advanced unique features include a multi-functional handlebar control, many beam options and an intelligent relay.

All at a very bright 7000-lumen output, yet consuming a meager 70W per set.

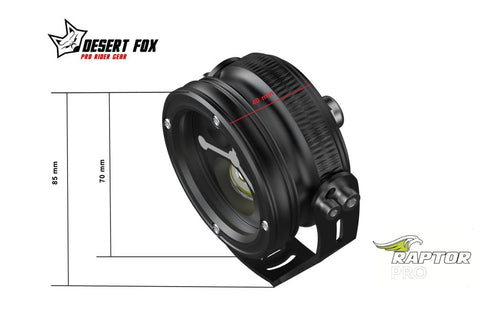

Machined from a solid piece of T6063 aluminum, which is further hard oxidised for maximum protection.

These spotlights are Desert Fox’s premium offering, designed for ultra-high visibility and safety.

The Desert Fox range of spot lights are available in two options: Raptor R3 and Raptor Pro RP2. Both options have been designed specifically for rugged motorcycle use, both on and off-road.

Features:

• Horn strobe*: when the hooter is used, the main beams of the spotlight can strobe in conjunction, dramatically increasing your safety.

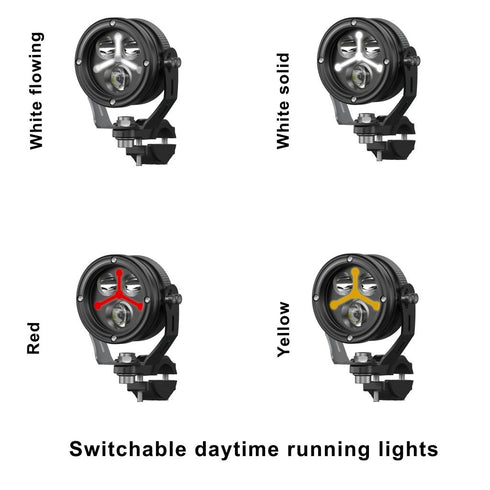

• Four different daytime running lights: White Strobe, Red, Yellow, and Solid White- be seen without blinding oncoming traffic.

• High/Low Beam synchronization*: synchronize the spotlights with your bike’s high/low beam.

• Flicker/turn signal synchronization: allows the daytime running lights to synchronize with your turn signals, effectively communicating your intentions to other road users.

• Dimmable beams.

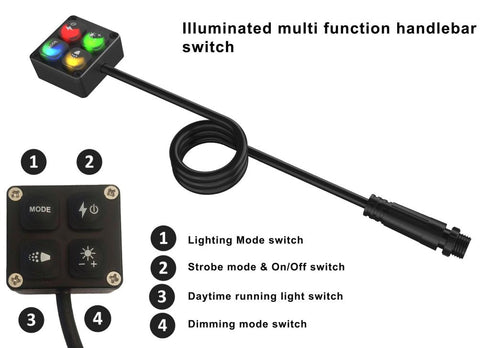

• Illuminated four-function handlebar switch for simplified control and ease of use.

• E-mark and FCC Compliant.

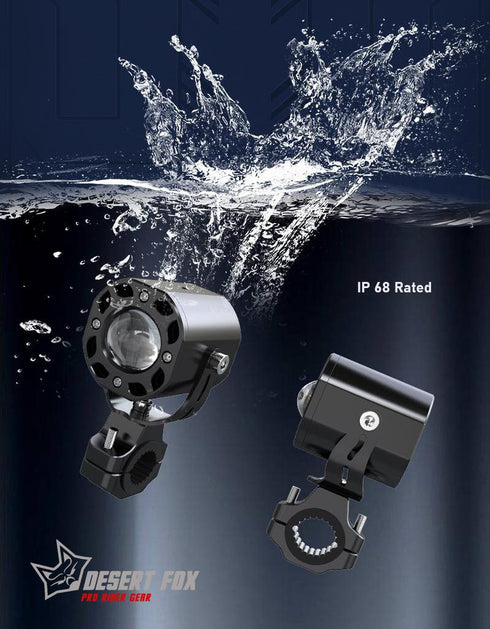

• IP68 waterproof rating.

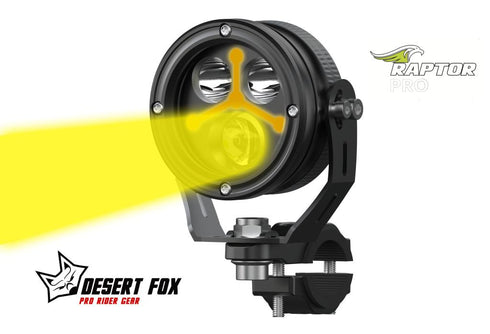

• Multiple beam options in both white and yellow fog.

• Multiple daytime running lights.

• Machined optical glass lens for enhanced light transmission.

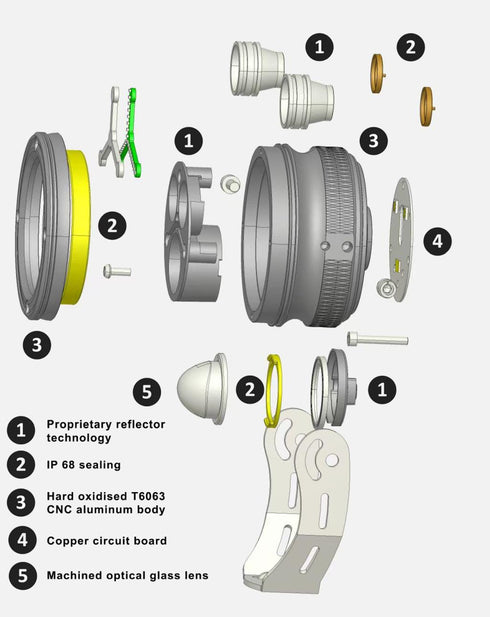

• Proprietary reflector technology.

• Hard oxidized T6063 CNC aluminum body for optimal durability and heat dissipation.

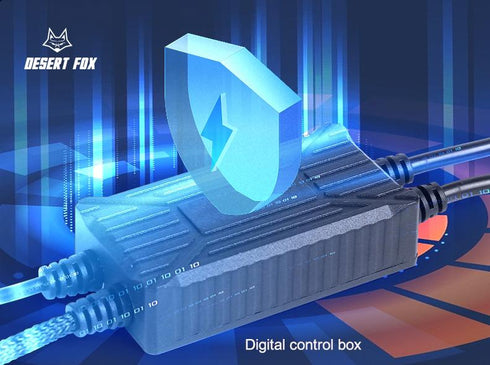

• Unique T6063 CNC aluminum intelligent relay provides effective battery protection to prevent battery drainage.

• CNC housings are more robust being precision milled from a solid piece of billet aluminum vs conventional cast aluminum housings.

• Unique four-button handlebar switch for hassle-free operation.

• Thermally protected.

• Copper circuit board for superior heat dissipation and extended lifespan.

• Plug and play. No cutting of existing wiring is required. Simply connect to your battery with the supplied wiring kit.

• Extended beam distance  > 400 meters.

• Unique tangent beam pattern prevents blinding oncoming traffic.

• Silicone wiring with gold plated connectors.

• Stainless steel glands ensure wiring is stable & will not crack under extreme conditions e.g lock to lock handlebar turning.

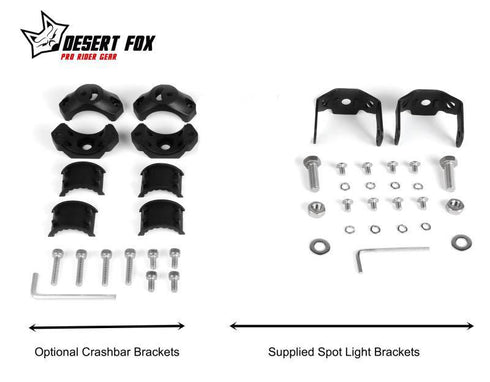

• Universal bracket allows for top or bottom mounting.

• Luminous flux: 7000 lumens per set.

• Power: 70w per set.

• Operating Voltage: 12~15V

• Anti-drop height: 1M

• Weight: 450 g per spotlight.
• 7 Different lighting modes (beam, emergency, daytime, dimmable, strobe, etc):

  • Beam:
    • Low white

    • Low yellow fog

    • High white

    • Combination low yellow fog and high white

  • Emergency:
    • Flashing yellow Fog

    • Low yellow fog & flashing white high

    • High flashing white

  • Check your local regulations for high beam sync, turn signal sync & hooter strobe connections. If in doubt, do not connect these wires. The system will still operate independently of these connections.
• A Raptor PRO RP2 kit includes:
  • 2 spotlights & mounting brackets.

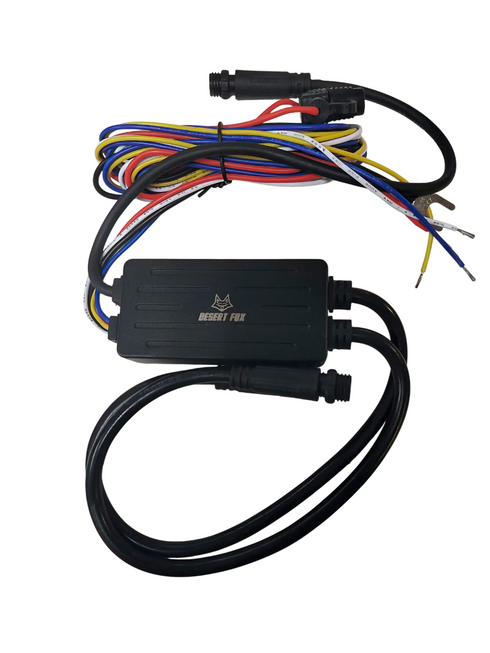

  • Full wiring harness including intelligent relay .

  • Waterproof wireless handlebar switch which enables you to operate the system without removing your hand from the handle bar.

  • Instruction manual and all mounting hardware.
• Optional/Sold Separately:
  • Model specific bike mounts are available from manufacturers such as SW Motech (sold separately). The Raptors have been designed to fit such aftermarket brackets.

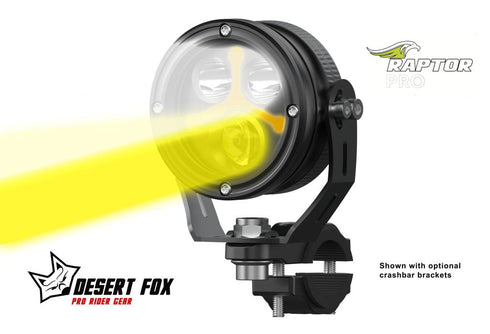

  • An optional Desert Fox crash bar mount kit is also available (sold separately).

*Not compatible with some CAN bus systems
