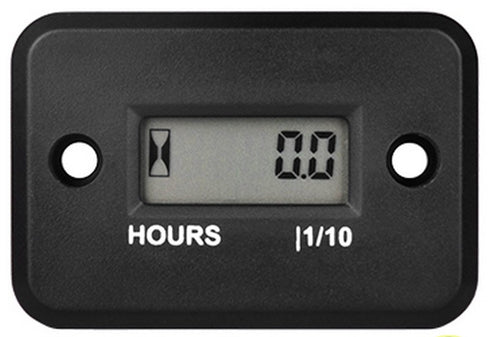

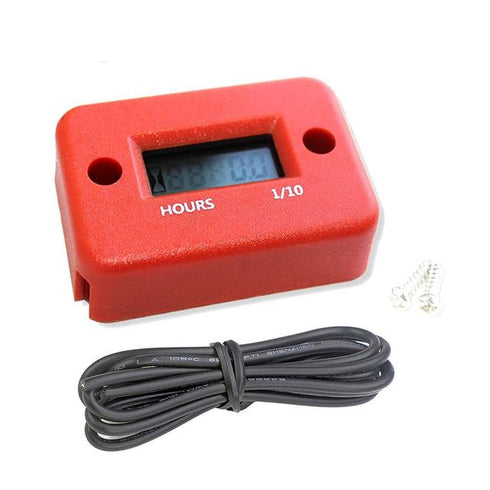

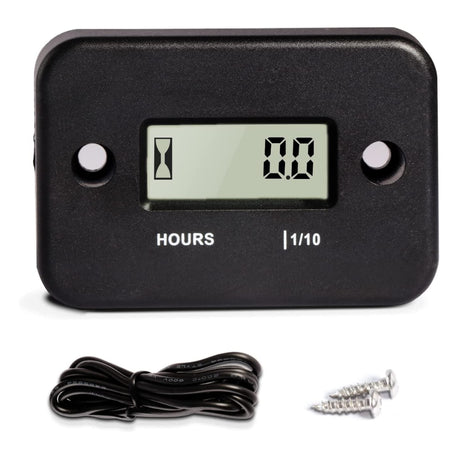

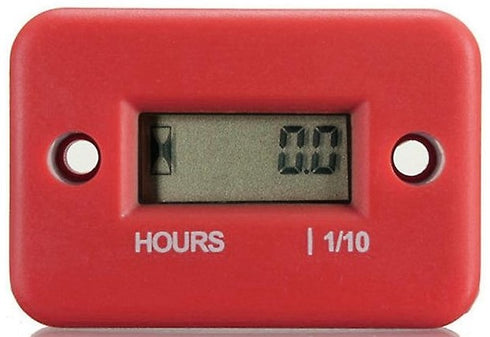

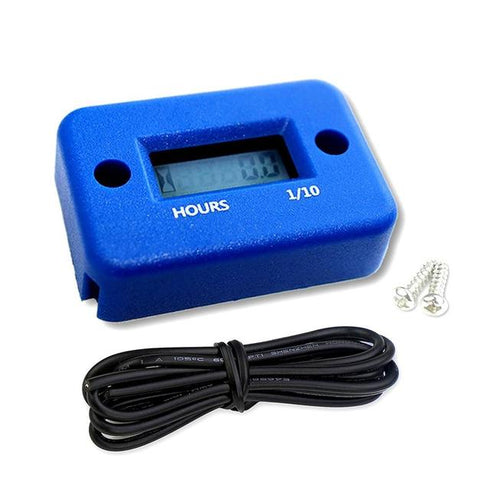

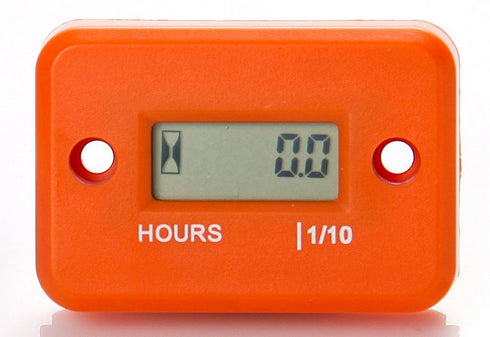

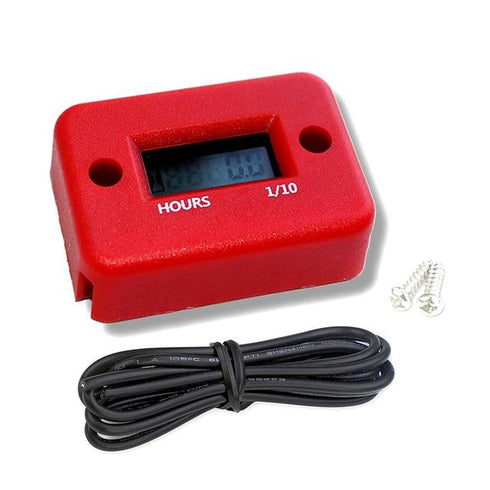

Runleader Hour Meter

Features :

• Track the Service Life of Your engine - oil changes, valve, adjustments, spark plugs, etc...
• Easy Installation - use the two screws or 3M tape to fix the hour meter.
• Hour glass symbol appears and flashes on/off to indicate counting time.
• Records and Displays to 99,999 hours. Stand-by time up to over 45,000 hours.
• Resolution 0.1 hour between 0.0-9999.9H. 1 hour between 10000-99999H.

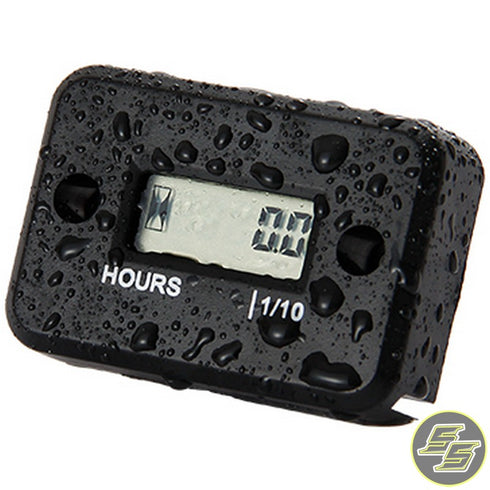

• Waterproof IP68.

Installation :

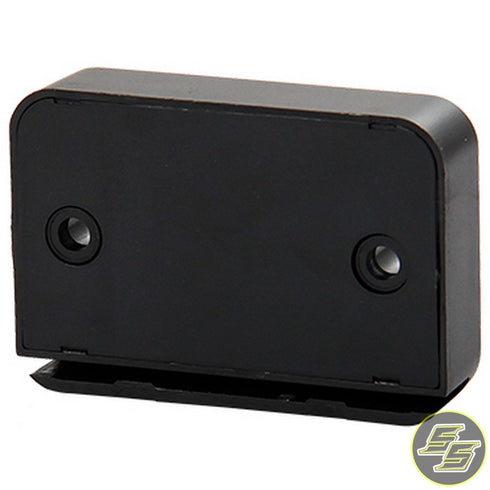

• Insert one terminal of the inductive cable into the groove of the back side of the hour meter, please make sure that the inductive cable is under the bottom of the groove, and it is not easy to loosen.
• Find a suitable place to install the hour meter. You have to check the installation place if it is too hot, the temperature can't be more than 65°C.Then please check the distance from the spark plug wire can not be more than 1m,otherwise it is not enough long to wrap the spark plug wire. At last, you need to check if the place is easy for you to view.
• There are two installation ways. One is use the two screws, you need to drill two holes, then fixed by the two screws. Another way is use the 3M tape, which is much more easier.
• Wrap the inductive cable to the engine spark plug wire. Please note that must wrap 5 circles or more, then fixed by the two zip ties. Please make sure the inductive cable is very firmly fixed.
• If the inductive cable is too long, you can cut it off. If the inductive cable is too short, you can extend it by yourselves.
